  Store > King OEM Shocks >

King Shocks Kit | Chevy Silverado 2500 & 3500 | 2011 +

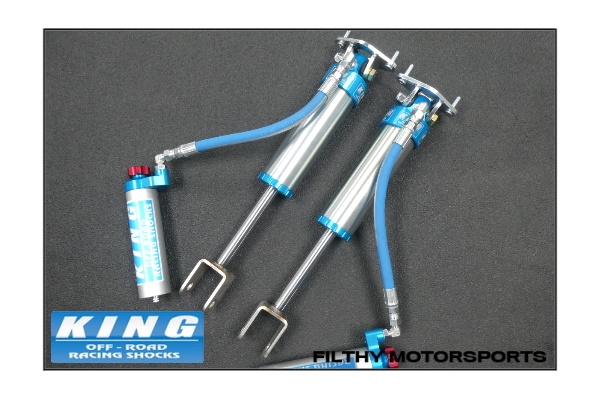

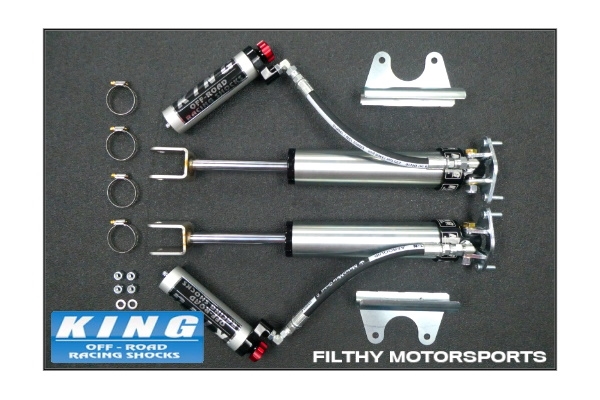

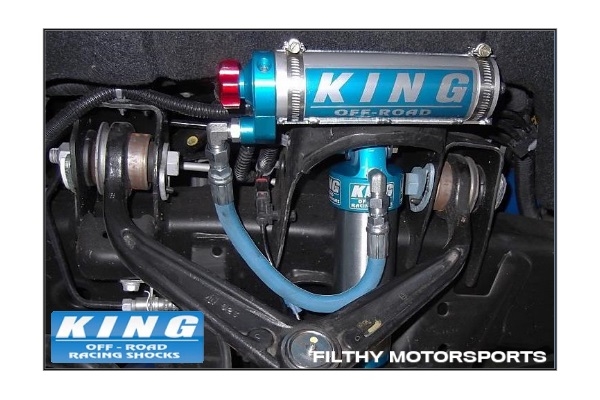

Chevy Silverado 2500/3500 King Shock Images

Additional Images


Select kit options and click "update price w/ options" button.

Price: $1,072.55



Availability: *In Stock w/ Adjusters*

Part Number:
KING-25001-302

Front OEM Kit Options




Compression Adjusters (A) [+$236.55]

Finned Reservoirs (Cosmetic) [+$180.00]

Custom Length Shocks for Lift Kit [+$300.00]

Custom Anodized Components [+$300.00]

Custom Anodized Reservoirs [+$120.00]

Custom Black Cerakote Shock Bodies [+$320.00]

Upper Control Arm Options

Add MAXX Travel Balljoint UCAs (2011-2019) [+$769.99]

Add MAXX Travel Balljoint UCAs (2020+) [+$769.99]

Add Camburg Uniball UCAs (2011-2019) [+$790.00]

Add Camburg Uniball UCAs (2020+) [+$890.00]

Leveling Kit Options

Add 1-2.5" MAXXCam Leveling Kit [+$360.00]

Rear Shock Options

Add Rear Shocks (25001-303) [+$1,072.55]

Compression Adjusters (A) [+$366.70]

Custom Length Shocks for Lift Kit [+$300.00]

Finned Reservoirs (Cosmetic) [+$180.00]

Custom Anodized Components [+$300.00]

Custom Anodized Reservoirs [+$120.00]

Custom Black Cerakote Bodies [+$320.00]

Shock Valving:




Please provide some vehicle and use details for our review.

Payment Terms Agreement:

I agree to the payment terms. (Required)

Returns: A 20% restocking fee applies to any authorized returns. Custom and special order shocks are non-returnable and non-refundable.

Sales Tax: King Shocks are only taxable when shipping to CO and WA, however, expedited orders may be taxable to AZ, CA, CO, NV, TX, UT, and WA. If sales tax is not calculated correctly by our website, we will adjust it upon order review.

Qty:
Description Compatibility Part Numbers


2011+ Chevy Silverado and GMC Sierra 2500 and 3500 King Shocks Kit
The following King shocks are a direct fit for 20011 and newer GM 2500 and 3500 series trucks:

25001-302 Front 2.5 Shocks w/ Remote Reservoirs
25001-302A Front 2.5 Shocks w/ Remote Reservoirs and Compression Adjusters


EXT - Extended travel front shocks for use with torsion bar keys

EXT2 - Extended travel front shocks for torsion keys and aftermarket UCAs.

25001-303 Rear 2.5 Shocks w/ Piggyback Reservoirs
25001-303A Rear 2.5 Shocks w/ Piggyback Reservoirs and Compression Adjusters


AT4 model trucks require EXT length front shocks.
Rear shocks fit factory rear springs with up to 2" lift block.



Important Vehicle Specific Notes and Recommendations

Chevy and GMC 2500 and 3500 series trucks feature IFS front suspensions with torsion bar springs and heavy duty rear leaf springs. This configuration provides excellent towing and hauling capabilities, however, the front end is very particular to its ride height and the heavy springs produce a lot of "kick-back" so shock tuning and setup are critical for the best results. A few important setup notes for these trucks are listed below:

1. These trucks sit low from the factory for gas mileage reasons and many arrive with the lower control arms already touching the bump stops so lifting the front end is desperately needed to improve ride quality. Front ride height is very easy to adjust by turning the torsion bar keys under the truck and it is common for people to over-crank the torsion bars for too much lift causing poor performance. Filthy Motorsports highly recommends using a proper leveling kit with torsion keys and aftermarket UCAs to achieve 1.5" to 2.5" of lift over average stock height.

2. The factory upper control arms act as limiting straps and this feature isn't always retained with aftermarket upper control arms. While these King shocks are able to serve as limiting straps for typical use, we recommend adding external limit straps for aggressive off-road use.

3. The factory torsion keys and upper control arms on GM HD trucks significantly limit suspension travel. Aftermarket torsion keys will allow for an additional 3/4" of tire travel when paired with extended travel (EXT) front shocks. When aftermarket torsion keys are paired with aftermarket upper control arms, an additional 3/4" of suspension travel is available when paired with EXT2 length front shocks for a total of 1.5" more travel.

4. Avoid adding heavy weight to the front end, especially on diesel engine trucks. The front suspension on GM HD trucks works much harder than Ford and Ram trucks with solid axles as the shocks are leverage 2:1 and the torsion springs are leveraged 5:1 on the lower control arms. Adding a 200lb. bumper and/or winch combination up front is the most that we recommend for good performance.

5. Keeping weight in the bed is an easy way to improve ride quality on full-size trucks. The factory springs require about 400-600lbs in the bed to reach their "sweet spot" and they will ride significantly harsher when unloaded. While King rear shocks will help significantly to control the springs, adding a fuel transfer tank or tool box in the bed will improve ride quality further. If towing and hauling is not a significant portion of how the truck is used, Filthy Motorsports highly recommend softer rear leaf springs.

6. Tires and tire pressure are a big factor to ride quality on full-size trucks. Because the springs and shocks are dedicated to dampening and controlling the movement of a 6,000-7,000lb truck, they can't do much for small bumps in the road like cracks or small rocks. These small imperfections are the responsibility of the tires and the more sidewall a tire has (larger tire on a smaller wheel) and the better it flexes, the better it will absorb these bumps. We recommend learning more about tire pressures and how maximum tire pressures are not needed when the truck is not towing or hauling.





[ Jump To: Tires | Springs & Shocks | Solid Axles | Coil Springs | Coilovers | IFS | Leaf Springs ]



King OEM Performance Shock Upgrade Kits are direct bolt-on replacement shocks and/or coilovers for your vehicle and come custom tuned for the ultimate balance of on-road handling and off-road performance. They include all of the necessary hardware you need for a bolt-on installation that can easily be done over the weekend. Custom length shafts and cylinders are available to work with any brand and size lift kit. Additional options include compression adjusting reservoirs, custom colors, internal or external bypass tubes, and race-spec valving.



Servicing, Tuning, and Rebuilding
All OEM upgrade shocks and coilovers are hand-built with the same parts as all of King's other Performance Race Series shocks. They are completely serviceable, tunable, and rebuildable to last a lifetime and it only requires a few simple hand tools, a few hours, and the appropriate King replacement parts from Filthy Motorsports. If you prefer not to do the work yourself, you can always bring (or send) your shocks to us and we will service them for you.



Learn: How to Service and Rebuild King Shocks:
King Shock Rebuild Instructions & King Shock Replacement Parts

Features
  • Custom built and valved for your application
  • Precision bored and honed, cadmium plated chromoly body
  • 3/4" or 7/8" hard chromed, heat treated, micro polished shaft
  • Aircraft quality billet aluminum components
  • Heat treated 6061 aluminum alloy piston
  • Heat treated stainless alloy valve shims
  • Teflon bronze composite wear band
  • Long lasting urethane seals
  • Hard anodized aluminum reservoirs
  • Replaceable Teflon lined spherical bearings
  • Fully rebuildable and serviceable
  • Made in the USA
