  Store > Beadlocks >

Trail Ready HD Series Beadlocks
Trail Ready beadlock wheel images.
Additional Images

Select wheel options and click "update price" button below:

Price: $489.95

Availability: Ships in 6-8 Weeks
Product Code: TRAILREADY

Select Wheel Options

Build as Simulated Beadlock (Street Legal)

View: Slim Ring | Wide Ring | World Series Ring

Add 3/16" Beadlock Ring Spacer [+$12.00]

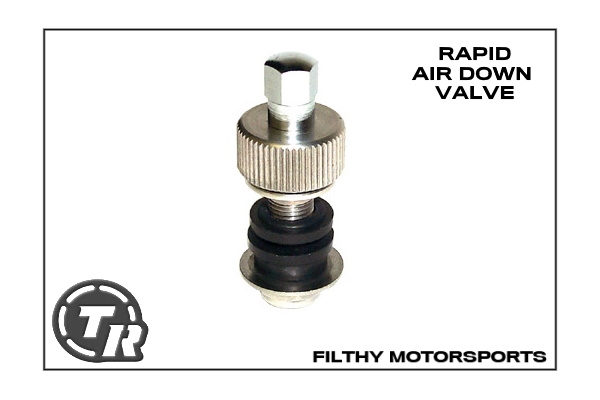

Add Rapid Air-Down Valves [+$30.00]

I agree to no returns once fitted and 20% restocking fee. (Required).


TR Beadlocks are now stronger with flow-form casting and forged bell.

One Year Warranty Standard
Non-prorated, non-transferable warranty covers any functional failure except loose lug nuts. Excludes sanctioned racing, finish, and freight. Customer must return wheel for repair or replacement at TR's discretion.

Trail Ready HD Series Beadlocks are extremely popular with desert racers and hard core rock crawlers alike and have proven themselves in every off-road race on the planet. They feature a thick, one piece, cast aluminum shell and your choice of three different beadlock rings machined from 3/8" 6061 T6 billet aluminum. The rings have counter bored bolt hols to prevent the beadlock ring bolts from snapping and being rounded off. Custom finish options include a black satin powder coat on the wheels and polished or anodized beadlock rings.

Trail Ready HD Series Beadlock Wheel Sizes
The following Trail Ready HD beadlocks are currently available through Filthy Motorsports:

Size Bolts Backspacing Weight Ring Styles

15 x 9.0" 20 3.0" / 3.5" / 4.0" 33 lbs. Slim / Wide / World Series
17 x 8.5" 24 3.5" / 4.0" / 4.5" / 5.0" / 5.5" / 6.0" 36 lbs. Slim / Wide / World Series
20 x 9.5" 28 4.5" / 5.0" / 5.5" / 6.0" 45 lbs. Slim / Wide / World Series

Brake Caliper Clearance: 17HD Wheels = 16" / 20HD Wheels = 18.5" at WMS and 19.5" at outer lip.
15" wheels will NOT clear 8x6.5"/8x170mm disc brake axles.

  • Race proven design
  • Heavy duty flow-formed casting
  • Forged bell section
  • Race liner compatible
  • Custom wheel finishes available
  • Machined in the USA
  • For off-road use only
  • One Year Warranty
